Brand Name : SII
Model Number : 28QVF2J
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : 28QVF2J
Diagonal Size : 2.8"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 240(RGB)×320, QVGA 141PPI
Pixel Format : RGB Vertical Stripe
Active Area : 43.2(W)×57.6(H) mm
Touchscreen : 4-wire Resistive Touch, F/G
Designed For : Handheld & PDA
240*320 28QVF2J 2.8 inch 300 cd/m2 LCD screen Display Panel
28QVF2J LCD Panel Product details :
| Brand | SII |
| Model P/N | 28QVF2J |
| Diagonal Size | 2.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 240(RGB)×320, QVGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 43.2(W)×57.6(H) mm |
| Bezel Opening | - |
| Outline Dim. | 49(W)×69(H)×3.31(D) mm |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Support Color | 262K 72% NTSC |
| Weight | TBD |
| Frame Rate | - |
| Treatment | Clear, Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Light Source | WLED [4S1P] |
| Designed For | Handheld & PDA |
| Touch Panel | 4-wire Resistive Touch, F/G |
| Interface Type | Parallel RGB (1 ch, 6-bit) + SPI35 pins FPC |
| Power Supply | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
| 240*320 28QVF2J 2.8 inch 300 cd/m2 LCD screen Display Panel | |
28QVF2J LCD Panel Shipping and Package :

28QVF2J LCD Panel FAQ :
Q: How long will I receive my goods 28QVF2J ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of 28QVF2J ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of 28QVF2J ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of 28QVF2J ?
A: Of course!If you make a large order, we will give you a discount.
|
|

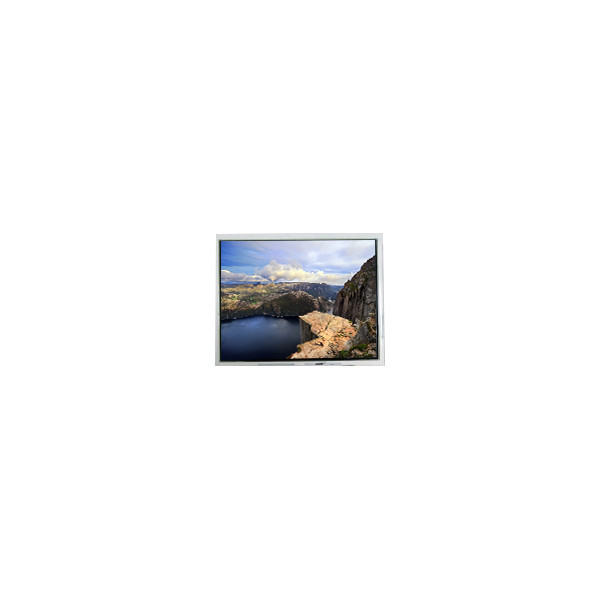

240*320 28QVF2J 2.8 inch 300 cd/m2 LCD screen Display Panel Images |
